●Push-to-Connect design for easy one hand operation.
●Avariety of port configurations are available to meet specific needs.
●Standard Seals are Nitrile.
●Constructed of Zinc bodies and Zinc plated steel sleeves and nipples.
●Engineered for speedy coupling and uncoupling. To lock-push in; to unlock-give the coupler sleeve a 1/8 turn. Designed to protect against accidental uncoupling.
|Temperature Range(Std .seals)*||-40° to+250° F.|
|Vacuum Data(inches Hg)

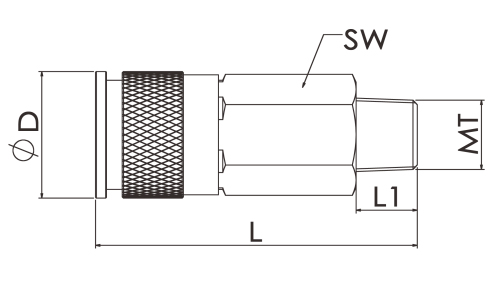

|SEO3-2SM||70.5||Φ28||10.5||22||1/4 " NPT|
|SEO3-3SM||71.5||Φ28||11||22||3/8 " NPT|
|SEO3-4SM||73.5||Φ28||13.5||22||1/2 " NPT|
