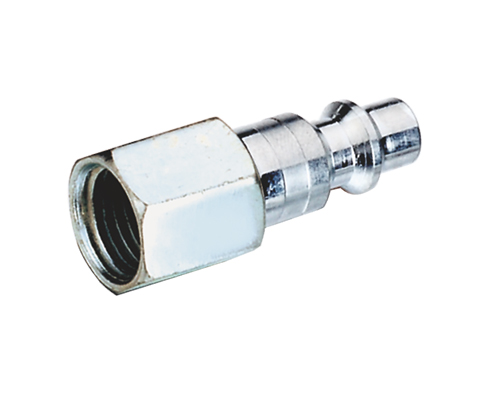

SUD1-2PF
FEATURES
●Accepts INDUSTRIAL type plugs
●Heavy-duty, high-quality design
●Deep knurled socket sleeve for positive gripping
●Proven and positive connection using ball-locking mechanism
APPLICATIONS
●Sleeve type couplings are widely used to connect air lines and can also be used with low pressure fluids.
●Their compact and economical design uses a ball locking mechanism consisting of captive steel balls that engage the
locking groove on the mating nipple. The sliding spring loaded sleeve on the coupler must be manually retracted in order to connect or disconnect the nipple. It is easy to do but two hands are normally required.
●Common applications include: compressed air, water, grease, paint, limited vacuum and limited gases.
SPECIFICATIONS
Body Size(in.) | 1/4 | 3/8 | 1/2 |
Rated Pressure(PSI) | 300 | 300 | 300 |
Temperature Range(Std .seals)* | -40° to+250° F. | ||
Locking Device | 4 balls | 8 balls | 8 balls |
Vacuum Data(inches Hg) Disconnected(coupler only) Connected |
Not recommended 27.4 |
Not recommended 27.4 |
Not recommended 27.4 |
CONSTRUCTION
●Socket Body: Brass, Steel, Stainless Steel
●Backnut: Brass, Steel, Stainless Steel
●Sleeve: Brass, Steel, Stainless Steel
Valve: Steel
Valve Spring: Steel, Stainless Steel
Locking Balls: Steel, Stainless Steel
Seals: Buna-N/Nitrile
●Surface Finish: Copper color, Zinc-plated
FEMALE THREAD
P/N | L | ΦD | L1 | SW | FT |
SUD1-2PF | 37 | Φ7.9 | 14 | 16 | 1/4” NPT |
SUD1-3PF | 39 | Φ7.9 | 16 | 20 | 3/8” NPT |
SUD1-4PF | 41.5 | Φ7.9 | 18.5 | 25 | 1/2” NPT |
